全國服務熱線MHBLZ柱式拉壓力傳感器采用柱式、S 型結構，拉、壓均可使用。測量精度高、穩定性好。適用于各種測力、稱重檢測裝置的工業自動化測控系統。
額定載荷 Rated load | 50kg～100t |
靈敏度 Output sensitivity | 2.0±0.05 mV/V |
非線性 Non-linearity | ±0.05～0.1 %F?S |
滯后誤差 Lag error | ±0.05～0.1 %F?S |
重復性誤差 Repeatability | ±0.05 %F?S |
蠕變 Creep | ±0.05 %F?S |
零點溫度系數 Zero temperature coefficient | ±0.05 %F?S/10℃ |
靈敏度溫度系數 Sensitivity temperature coefficient | ±0.05 %F?S/10℃ |
輸入電阻 Input resistance | 380±30Ω |
輸出電阻 Input resistance | 350±5Ω |

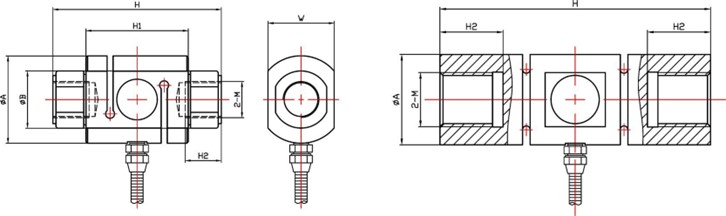

量程 | ?A | ?B | W | M | H | H2 |
50kg～700kg | ?44 | ?28 | 26 | M16X1.5 | 88 | 18 |
1t～5t | ?58 | ?38 | 44 | M24X1.5 | 112 | 24 |
8t～10t | ?84 | ?60 | 58 | M36X4 | 160 | 36 |
20t | ?60 | - | - | M36X4 | 180 | 40 |
30t | ?76 | - | - | M45X4.5 | 213 | 50 |
50t | ?94 | - | - | M64X3 | 332 | 70 |
100t | ?112 | - | - | M76X3 | 367 | 80 |
